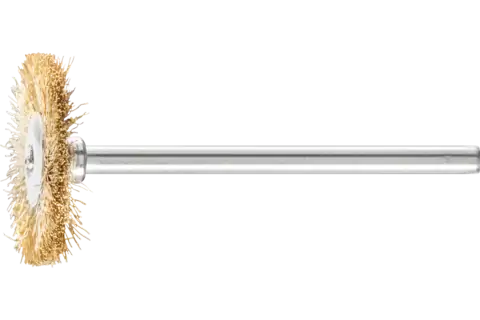

Miniature wheel brush RBU dia. 22x2 mm shank dia. 3 mm brass wire dia. 0.10

Technical information

Dia. external: 22 mm
Dia. filament material: 0.1 mm
Dia. shank: 3 mm
Filament material: Brass wire (MES)
Length, filament: 6 mm
Length, total: 46 mm
Max. RPM: 12000 RPM
Mounting system: Shank
RPM, optimum: 4.000 - 10.000 RPM
Width: 2 mm
Packaging unit: 10 pieces

Description

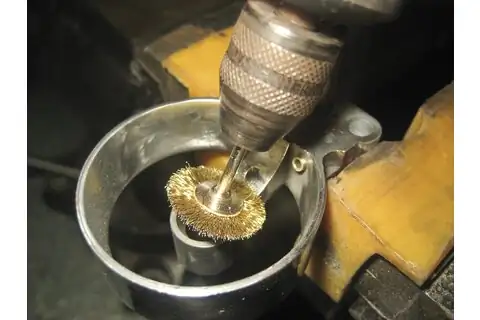

Suitable for light brushing such as deburring, cleaning and polishing.

PFERD TOOLS offers a wide range of miniature brushes for precision work. These can be used on flexible shaft drives, micro motors or electric grinders.

Brushes with brass wire filament material are suitable for particular applications such as surface finishing on workpieces made from copper and brass. In comparison to steel wire, brass wire is softer and more flexible. For all brushes with brass wire, PFERD TOOLS uses wire quality CuZn37.

Brass wire withstands temperatures up to 180 °C.

Advantages

Maximum precision and efficiency in work on delicate workpieces.
Enables focused working in hard-to-reach areas.
Non-sparking.
Creates fine surfaces.

Recommendations for use

Please observe the recommended rotational speeds.

Safety notes

When clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This applies in particular for use in the high rotational speed range. The minimum clamping length is 10 mm.

Materials that can be worked: Brass; Copper; Other non-ferrous metals; Stainless steel (INOX); Zinc

Applications: Cleaning; Deburring; Removing oxide layers

Drive types: Flexible shaft drive; Straight grinder
