Wheel brushes crimped miniature brushes, shank-mounted

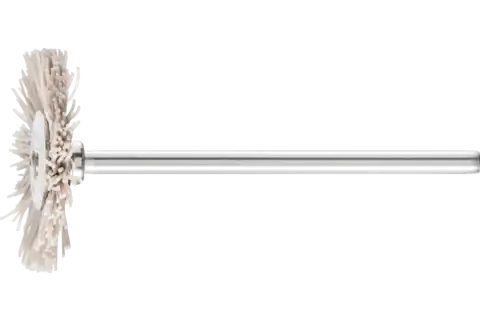

Miniature wheel brush RBU dia. 22x2 mm shank dia. 2.34 mm aluminium oxide filament dia. 0.30 grit 600

Item number:
43100711
EAN:
4007220032497

Login / Register
Choose options
Dia. external
Dia. filament material
Dia. shank
Filament material
Technical information
Miniature wheel brush RBU dia. 22x2 mm shank dia. 2.34 mm aluminium oxide filament dia. 0.30 grit 600

Dia. external
22 mm
Dia. filament material
0.3 mm
Dia. shank
2.34 mm
Filament material
Aluminium oxide (AO)
Grit size
600
Length, filament
6 mm
Length, total
1.13 /16 Inch
Length, total
46 mm
Max. RPM
12000 RPM
Mounting system
Shank
RPM, optimum, from
1200 RPM
RPM, optimum, to
5000 RPM
Width
2 mm
Packaging unit
10 pieces
Description

Suitable for light brushing such as deburring, cleaning and polishing.

PFERD offers a wide range of miniature brushes for precision work. These can be used on flexible shaft drives, micro motors or electric grinders.

Brushes with aluminium oxide (AO) are less sharp-edged and aggressive compared with SiC. They are primarily suitable for polishing and smoothing finishes on soft metals.

Plastic filament withstands temperatures up to 220 °C.

Advantages
  • Maximum precision and efficiency in work on delicate workpieces.
  • Enables focused working in hard-to-reach areas.
  • Abrasive grains are embedded in flexible plastic filaments, which means that the filament works on the sides as well as at the tip.
Recommendations for use
  • Please observe the recommended rotational speeds.
  • Use coolant for applications where large amounts of heat are produced.
Safety notes
  • When clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This applies in particular for use in the high rotational speed range. The minimum clamping length is 10 mm.
Materials that can be worked
Aluminium
Bronze
Cast iron
Cast steel
Cobalt-based alloys
Other non-ferrous metals
Steel, cast steel
Steel materials with a hardness > 54 HRC
Steels up to 1,200 N/mm² (< 38 HRC)
Applications
Cleaning
Deburring
Drive types
Flexible shaft drive
Straight grinder
