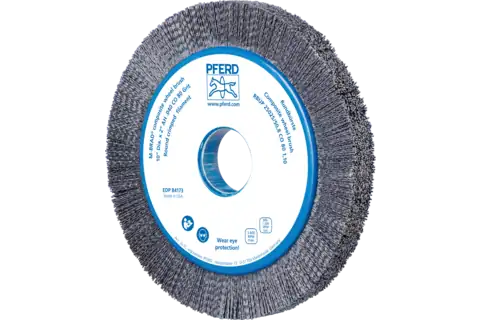

Wheel brushes crimped Composite, with hole

COMPOSITE wheel brush RBUP dia. 250x25x50.8 mm hole ceramic filament dia. 1.10 mm grit 80 stationary

Item number:
79184173
EAN:
4007220956724

Login / Register
Choose options
Dia. external
Dia. filament material
Filament material
Grit size
Width
Technical information
COMPOSITE wheel brush RBUP dia. 250x25x50.8 mm hole ceramic filament dia. 1.10 mm grit 80 stationary

Dia. external
250 mm
Dia. filament material
1.1 mm
Dia. hole
50.8 mm
Filament material
Ceramic oxide grain (CO)
Grit size
80
Length, filament
38 mm
Max. RPM
1800 RPM
Mounting system
Centre hole
RPM, optimum, from
500 RPM
RPM, optimum, to
800 RPM
Width
25 mm
Packaging unit
1 piece
Description

Particularly aggressive brush. Its plastic filament makes this product particularly suitable for deburring complicated components such as cylinder heads or gear toothing, as well as for working on surfaces. Developed specially for industrial use.

Composite brushes from PFERD have been specifically developed for industrial, automated use. They are suitable for a variety of applications and their variable clamping options mean that they can be used on many different drive systems. This offers the advantage that the workpiece can be produced and finished on the same machine. As a result, labour-intensive, manual work is reduced and reproducible results are achieved with short cycle times. For efficient use, numerous application parameters such as the processing time and feed rate must be coordinated with each other and a suitable brush must be selected.

Brushes with ceramic oxide grain (CO) offer good toughness and excellent sharpness. For high stock removal values and aggressive brushing behaviour.

Plastic filament withstands temperatures up to 220 °C.

Advantages
  • Long tool life and aggressive brushing effect due to a very high filament density.
  • Extremely smooth operation due to even distribution of the filament material.
  • Abrasive grains are embedded in flexible plastic filaments, which means that the filament works on the sides as well as at the tip.
  • For particularly aggressive machining and for giving the workpiece a high surface quality.
Recommendations for use
  • Please observe the recommended rotational speeds.
  • The CO filament material is suitable for particularly aggressive machining and for giving the workpiece a high surface quality.
  • Use coolant for applications where large amounts of heat are produced.
Ordering notes
  • Please order adapter pairs APM 50.8 separately.
Materials that can be worked
Aluminium
Bronze
Cast iron
Cast steel
Cobalt-based alloys
Hard non-ferrous metal
High-temperature-resistant materials
Nickel-based alloys (e.g. Inconell and Hastelloy)
Nickel or titanium-based superalloys
Other non-ferrous metals
Soft titanium alloys (tensile strength 500 N/mm²)
Steel, cast steel
Steel materials with a hardness > 54 HRC
Steels up to 1,200 N/mm² (< 38 HRC)
Titanium
Titanium alloys
Applications
Cleaning
Deburring
Structuring (matt finishing, brush matting and satin finishing)
Drive types
Robot
Stationary machines
Tool machine
PFERDVALUE

PFERDEFFICIENCY

recommends composite brushes to achieve maximum stock removal as quickly as possible.
product.aggregation.prv-eff

PFERDERGONOMICS

recommends composite brushes to sustainably reduce the vibrations produced during use.
product.aggregation.prv-ergo
