Wheel brushes crimped Composite, with hole

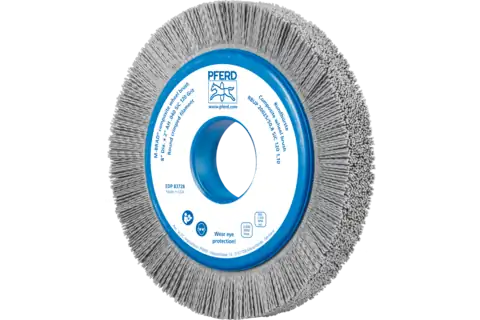

COMPOSITE wheel brush RBUP dia. 200x25x50.8 mm hole SiC filament dia. 1.10 mm grit 120 stationary

RBUP 20025/50,8 SiC 120 1,10
Item number:
79183728
EAN:
4007220956656
Technical data Change variant

Login / Register
Choose options
Dia. external
Dia. filament material
Filament material
Grit size
Width

Matching accessories & spare parts

Technical information
COMPOSITE wheel brush RBUP dia. 200x25x50.8 mm hole SiC filament dia. 1.10 mm grit 120 stationary

Dia. external
200 mm
Dia. filament material
1.1 mm
Dia. hole
50.8 mm
Filament material
Silicon carbide (SiC)
Grit size
120
Length, filament
32 mm
Max. RPM
3600 RPM
Mounting system
Centre hole
RPM, optimum
900 - 1.500 RPM
Width
25 mm
Packaging unit
1 piece
Description

Particularly aggressive brush. Its plastic filament makes this product particularly suitable for deburring complicated components such as cylinder heads or gear toothing, as well as for working on surfaces. Developed specially for industrial use.

Composite brushes from PFERD TOOLS have been specifically developed for industrial, automated use. They are suitable for a variety of applications and their variable clamping options mean that they can be used on many different drive systems. This offers the advantage that the workpiece can be produced and finished on the same machine. As a result, labour-intensive, manual work is reduced and reproducible results are achieved with short cycle times. For efficient use, numerous application parameters such as the processing time and feed rate must be coordinated with each other and a suitable brush must be selected.

Brushes with silicon carbide (SiC) are particularly well suited to deburring work and surface improvement.

Plastic filament withstands temperatures up to 220 °C.

Advantages
  • Long tool life and aggressive brushing effect due to a very high filament density.
  • Extremely smooth operation due to even distribution of the filament material.
  • Abrasive grains are embedded in flexible plastic filaments, which means that the filament works on the sides as well as at the tip.
Recommendations for use
  • Please observe the recommended rotational speeds.
  • Use coolant for applications where large amounts of heat are produced.
Ordering notes
  • Please order adapter pairs APM 50.8 separately.
Materials that can be worked
Aluminium
Bronze
Cast iron
Cast steel
Cobalt-based alloys
Other non-ferrous metals
Stainless steel (INOX)
Steel, cast steel
Steel materials with a hardness > 54 HRC
Steels up to 1,200 N/mm² (< 38 HRC)
Thermoplastics
Thermosetting plastics
Wood
Applications
Cleaning
Deburring
Roughening
Structuring (matt finishing, brush matting and satin finishing)
Drive types
Automated centres
Flexible shaft drive
Robot
Straight grinder
Tool machine
PFERD TOOLS VALUE

PFERD TOOLS EFFICIENCY

recommends composite brushes to achieve maximum stock removal as quickly as possible.
product.aggregation.prv-eff

PFERD TOOLS ERGONOMICS

recommends composite brushes to sustainably reduce the vibrations produced during use.
product.aggregation.prv-ergo
