Wheel brushes crimped Composite FLEX, with hole

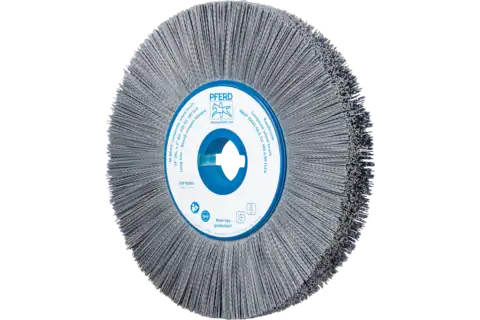

COMPOSITE FLEX wheel brush RBUP dia. 350x25x50.8 mm hole SiC filament dia. 0.90 mm grit 180 stationary

RBUP 35025/50,8 SiC 180 0,90 FLEX
Item number:
79183665
EAN:
4007220038680
Technical data Change variant

Login / Register
Choose options
Dia. external
Dia. filament material
Filament material
Grit size
Width
Technical information
COMPOSITE FLEX wheel brush RBUP dia. 350x25x50.8 mm hole SiC filament dia. 0.90 mm grit 180 stationary

Brush keyways
12.7 x 6.4 mm
Dia. external
350 mm
Dia. filament material
0.9 mm
Dia. hole
50.8 mm
Filament material
Silicon carbide (SiC)
Grit size
180
Length, filament
89 mm
Max. RPM
1800 RPM
Mounting system
Centre hole
Packaging
Industrial packaging
RPM, optimum
500 - 800 RPM
Width
25 mm
Packaging unit
1 piece
Description

Particularly flexible brush. Its plastic filament makes this product particularly suitable for deburring complicated components such as cylinder heads or gear toothing. Developed specially for industrial use.

Composite brushes from PFERD TOOLS have been specifically developed for industrial, automated use. They are suitable for a variety of applications and their variable clamping options mean that they can be used on many different drive systems. This offers the advantage that the workpiece can be produced and finished on the same machine. As a result, labour-intensive, manual work is reduced and reproducible results are achieved with short cycle times. For efficient use, numerous application parameters such as the processing time and feed rate must be coordinated with each other and a suitable brush must be selected.

Brushes with silicon carbide (SiC) are particularly well suited to deburring work and surface improvement.

Plastic filament withstands temperatures up to 220 °C.

Advantages
  • Long tool life and aggressive brushing effect due to a very high filament density.
  • Extremely smooth operation due to even distribution of the filament material.
  • Highly flexible, enabling optimal adjustment to the workpiece contour and less heat build-up.
  • Abrasive grains are embedded in flexible plastic filaments, which means that the filament works on the sides as well as at the tip.
Recommendations for use
  • Please observe the recommended rotational speeds.
  • Use coolant for applications where large amounts of heat are produced.
Materials that can be worked
Aluminium
Bronze
Cast iron
Cast steel
Cobalt-based alloys
Other non-ferrous metals
Stainless steel (INOX)
Steel, cast steel
Steel materials with a hardness > 54 HRC
Steels up to 1,200 N/mm² (< 38 HRC)
Thermoplastics
Thermosetting plastics
Wood
Applications
Cleaning
Deburring
Roughening
Structuring (matt finishing, brush matting and satin finishing)
Drive types
Automated centres
Robot
Tool machine
