Threaded cup brushes, knotted

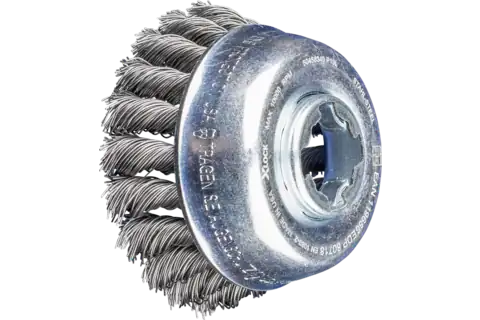

Cup brush knotted TBG dia. 80 mm hole 22.2 mm/X-LOCK steel wire dia. 0.50 mm angle grinders

Item number: 43306036
EAN: 4007220119686
Login / Register
Choose options
Dia. external
Dia. filament material
Filament material
Mounting system
Packaging unit
Technical information

Cup brush knotted TBG dia. 80 mm hole 22.2 mm/X-LOCK steel wire dia. 0.50 mm angle grinders

Dia. external
80 mm
Dia. external [inch]
3 Inch
Dia. filament material
0.5 mm
Dia. thread
Filament material
Steel wire (ST)
Grit size
No information
Length, filament
20 mm
Mounting system
Number, knots
20 pcs.
POS packaging
RPM, max.
11500 RPM
RPM, optimum, from
5000 RPM
RPM, optimum, to
10000 RPM
Packaging unit
1 piece

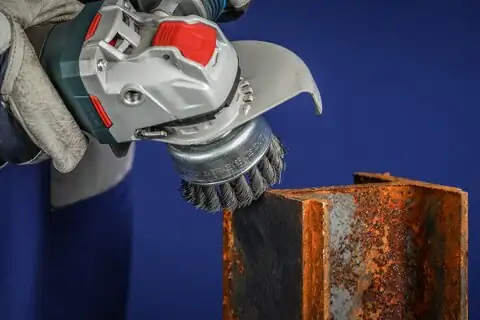

Aggressive brush. Excellent for heavy-duty brushing such as deburring, cleaning, derusting and descaling and removal of spatter.

The Bosch X-LOCK system for angle grinders enables you to change tools quickly and easily. Instead of a round centre hole, the X-LOCK system features an X-shaped contour, which allows the tool to be fixed on the angle grinder in a form-fitting manner. This means different kinds of tools can be clamped in a reliable manner in a very short space of time. The unique system meets the highest of quality and safety standards and can withstand rough and harsh application conditions.|X-LOCK from Bosch is the world's first quick-changing system for angle grinders: Position the tool in the X-LOCK holder, click it into place – and you're ready! It's never been so easy to change accessories on angle grinders. X-LOCK is creating a new standard which makes professionals’ lives easier and increases their productivity. Bosch Power Tools relies on strong partners like PFERD. PFERD has developed the principle for connecting the X-LOCK punched part with the bonded abrasive, flap discs and brushes and created the conditions to enable them to be produced industrially.

Steel wire is the most common filament material. Brushes with steel wire as the filament material are especially well-suited to work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications.

Steel wire withstands temperatures up to 300 °C.

  • Aggressive brushing effect due to the very stiff wire knots.
  • With X-LOCK arbor for quick and easy tool changing.
  • Secure fixing as the tool audibly clicks into place.
  • Long tool life through use of PFERD special wire.
Recommendations for use
  • Please observe the recommended rotational speeds.
  • Place the tool on the X-LOCK quick-change system of your angle grinder and secure it by lightly pressing it down. The tool will audibly click into place.
  • Loosen the tool by actuating the lever.
Materials that can be worked
Cast iron
Steel, cast steel
Paint stripping
Removing oxide layers
Root seam processing
Work on fillet welds
Work on weld seams
Drive types
Angle grinder


recommends brushes with an X-LOCK mounting for rapid tool changes.
