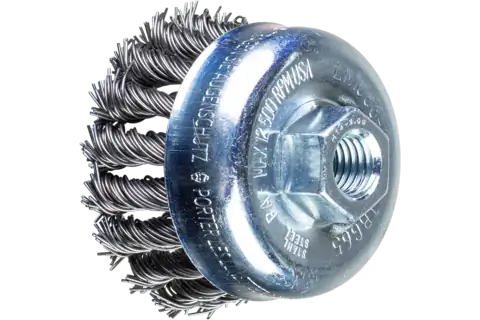

Cup brush knotted TBG dia. 65 mm M14 steel wire dia. 0.80 mm angle grinders

Technical information

Cup brush knotted TBG dia. 65 mm M14 steel wire dia. 0.80 mm angle grinders

Dia. external: 65 mm
Dia. filament material: 0.8 mm
Dia. thread: M14x2
Filament material: Steel wire (ST)
Grit size: No information
Length, filament: 22 mm
Max. RPM: 12500 RPM
Mounting system: Thread
Number, knots: 18 pcs.
PFERD TOOLS type: POS TBG 65/M14 ST 0,80

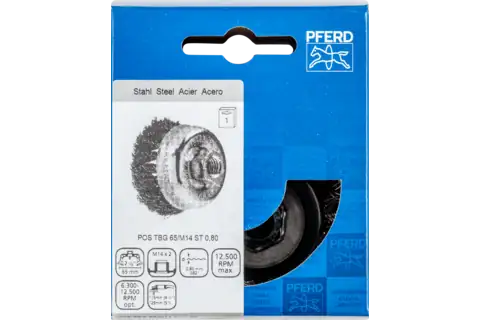

Packaging: POS packaging
RPM, optimum: 6.300 - 12.500 RPM
Packaging unit: 1 piece

Description

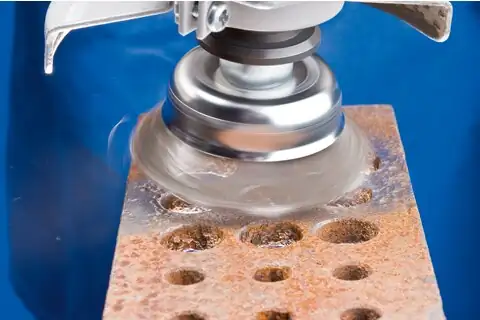

Aggressive brush. Excellent for heavy-duty brushing such as deburring, cleaning, derusting and descaling and removal of spatter.

Steel wire is the most common filament material. Brushes with steel wire as the filament material are especially well-suited to work on surfaces and deburring. PFERD TOOLS special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications.

Steel wire withstands temperatures up to 300 Â°C.

Advantages

Aggressive brushing effect due to the very stiff wire knots.
Long tool life through use of PFERD TOOLS special wire.

Recommendations for use

Please observe the recommended rotational speeds.
For optimum results, use on powerful angle grinders.

Materials that can be worked: Cast iron; Cast steel; Steel, cast steel; Steel materials with a hardness > 54 HRC; Steels up to 1,200 N/mm² (< 38 HRC)

Applications: Cleaning; Deburring; Derusting; Descaling; Paint stripping; Removing oxide layers; Root seam processing; Work on fillet welds; Work on weld seams

Drive types: Angle grinder; Drive spindle

Downloads

Threaded cup brushes, knotted

Cup brush knotted TBG dia. 65 mm M14 steel wire dia. 0.80 mm angle grinders

POS TBG 65/M14 ST 0,80
